Description

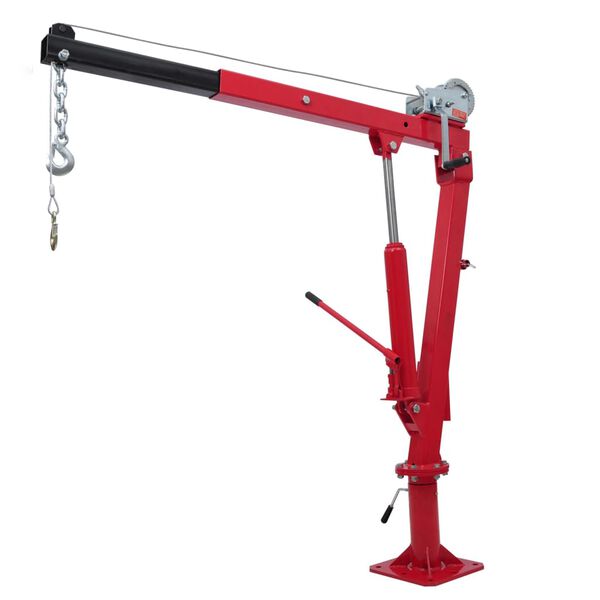

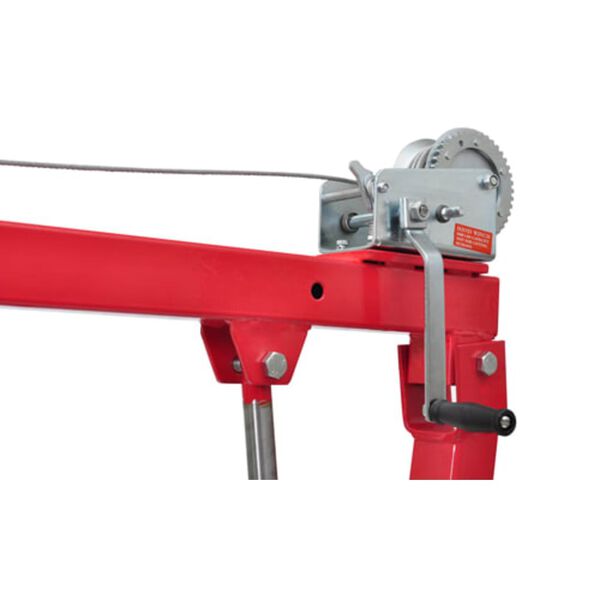

This pickup crane with cable winch can easily be mounted on your truck, this provides for easy loading and unloading. Due to the winch, you can pick up loads directly from the ground. The winch is manually operated. When fully loaded the ball bearings of the turret provides for smooth adjustment. There is a separate bracket for the included rod. Also a large chain with hooks is included. The head with bearings and locking screw can swivel 360 °. With this pick up crane you will be able to safely transport goods and object at the back of your truck.

Specifications

  • Maximum height from ground to bottom of hook: 63 inch
  • Total height from ground: 84.6 inch
  • Cable length of the winds: 31.2 ft
  • Rope size: 0.2 inch
  • Base mounting plate: 10.6 x 10.6 inch. with 8 mounting holes
  • Maximum opening of large hooks: 0.8 inch
  • Maximum opening of small hooks: 0.9 inch
  • Load arm length: min. 39.4 inch. / max. 55.1 inch
  • 2-stage adjustable load arm: 992/1984 lb
  • Dimensions: 29.5 - 55.1 x 10.6 x 61 - 84.6 inch (l x w x h)
  • California Proposition 65

    WARNING: California's Proposition 65

  • EAN:8718475827177
  • SKU:210049
  • Brand:vidaXL
